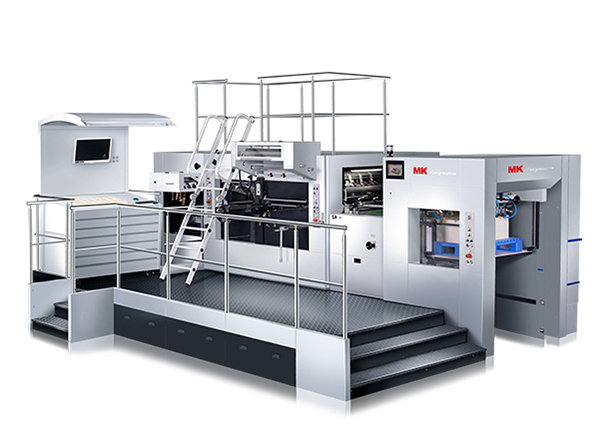

Easymatrix 106FC

The Easymatrix 106FC is the perfect machine, if you like to widen your packaging portfolio with hot foil stamping. Additional to the cutting station, it is equipped with a hot foil unit, which enables you to install three to six longitudinal and up to two transversal foil feeding shafts. The Hot Foil Computer System helps to speed up the foil adjustment and keep an eye on the parameters while running the machine.

Product Features

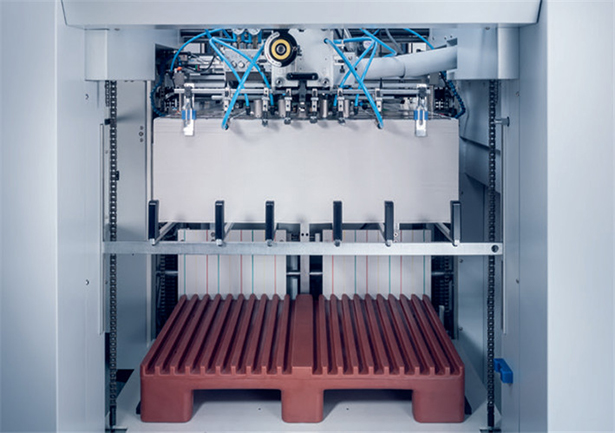

Non-stop Feeder
- Suction head for paper, cardboard and corrugated cardboard
- Suction head with quick ­positioning function
- Pile platform with motorized pile side alignment
- Mechanical double­ sheet control

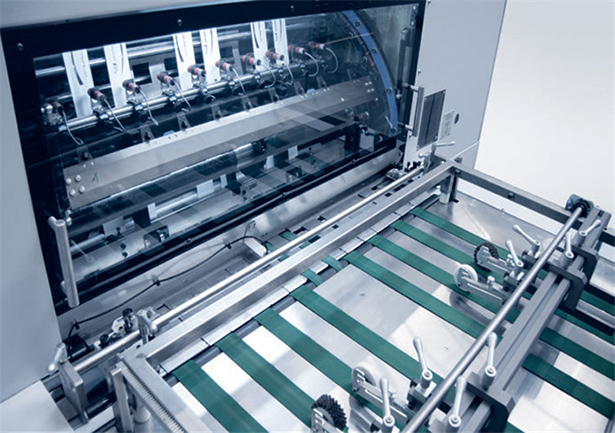

Feed Table
- Register system
- Side lay with pull/push function on operator and drive side
- Central adjustment of brushes and rollers
- Four front lays with active optical monitoring
- Ultrasonic double ­sheet detector



Platen Press
- Register system
- Motorized die­-cutting pressure adjustment
- Cutting plate fine adjustment
- Air cushion for easy cutting plate handling
- Chase changer (optional)

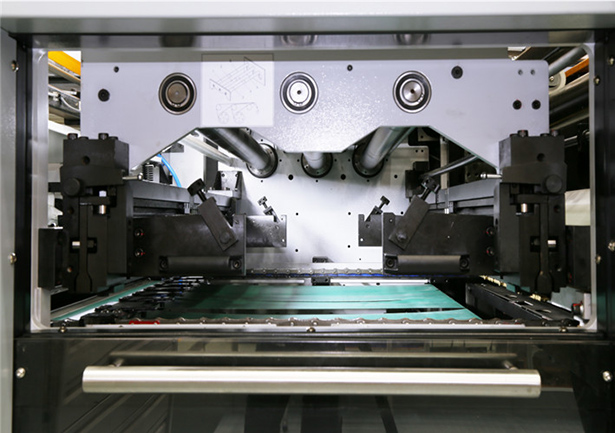

Foil Stamping Station
- Three longitudinal foil feeding shafts
- Hologram device (optional)
- 20 heating zones (cutting stational)
- Telescopic longitudinal foil feeding bars
- Motorized brush system for foil disposal
- Rewinder (optional)

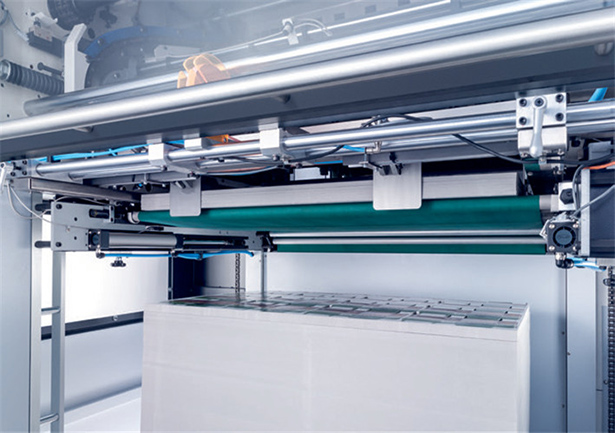

Delivery
- Non­stop rolling carpet
- Pneumatic flap for test sheet removal
- Brake brush with mechanical brake force Adjustment

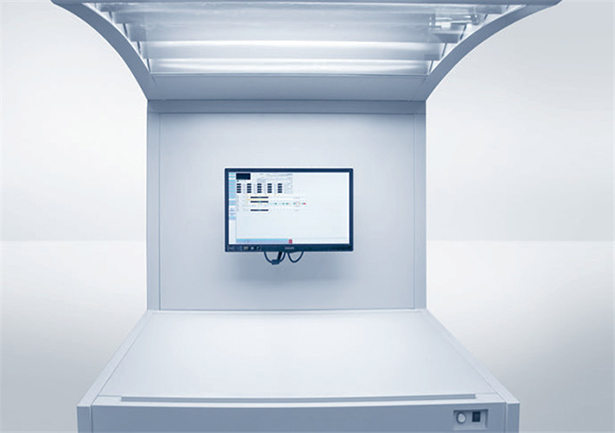

Hot Foil Computer System
- Calculation of foil feeding steps
- Adjustment of temperature and die­-cutting pressure
- Hologram application control
- Job data storage
- Simulation of foil feeds



Technical Parameter

Processed able materials
Paper (min.)	90 g/m2
Solid cardboard (max.)	2,000 g/m2
Corrugated cardboard (max.)	4.0 mm (0.16 in)
Performance data
Sheet format (max.)	750 x 1,060 mm (29.53 x 41.73 in)
Sheet format (min.)	360 x 400mm (14.17 x15.75 in)
Die-cutting pressure (max.)	2.6 MN/260 t
Machine speed (max.)	7,500 sheets per hour
Hot-foil embossing
Hot foil embossing speed (max.)	6 ,500 sheets per hour
Hologram (option) speed (max.)	5,500 sheets per hour
Temperature max.	180°C
Number of heating zones	20
Foil reel diameter:	max.250 mm (9.84 in)
Longitudinal
Transversal max.	200 mm (7.87 in)
Foil width	20 -1,020 mm(0.79 -40.16 in)
Pile heights (incl. pallet)
Feeder pile height (max.)
Without nonstop	1,150 mm (45.27 in)
With nonstop operation	900 mm (35.43 in)
Delivery pile height (max.)	1 ,000 mm (39.37 in)
