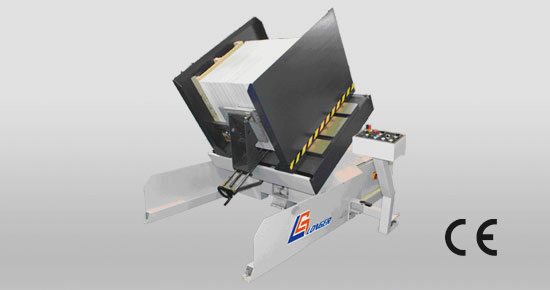

Pile turner LG-T Series
Description
This machine can reverse paper 180° (Paper height 1350 m/m) and inclining backward both turning 90° over 180° paper, then alignment paper by blowing.
Features
-
Complete alignment of sheets with inclining function.
-
High pressure blower of getting rid of paper powder
-
Preventing paper blocking after printing.
-
E style pallet loader, feed pile by pallet truck.
-
Intelligent electronic controller easy and safe to operate.
-
Easily change other kinds of pallets.
Specifications
|
Specification |
T-900 |
T-1200 |
|
Max sheet size |
mm |
540*740 |
800*1200 |
|
Pile loading capacity |
kgs |
500 |
1000 |
|
Platform width |
mm |
900 |
1250 |
|
Platform depth |
mm |
620 |
900 |
|
Max. pile height(included two pallets) |
mm |
1200 |
1350 |
|
Min. pile height(included two pallets) |
mm |
290 |
650 |
|
Power require |
kw |
3.9 |
5.5 |
|
Space require (L*W*H) |
mm |
2150 x 2390 x 1760 |
2530 x 2815 x 2095 |
|
Net Weight |
kgs |
1000 |
1500 |
|
Electrical Supply |
|
As required |
As required |
*Technical data to change without notice
