FOLDER
A5 to A3, friction feed, variable speed to 10.000pcs/hr, fully auto setting fold plates with all standard fold patterns preprogrammed 36 custom program memories, empty bin sensor, skew adjustment, jam sensor, extra-large fold rollers on ball bearing, fully covered fold plates for low noise set and preset counter.

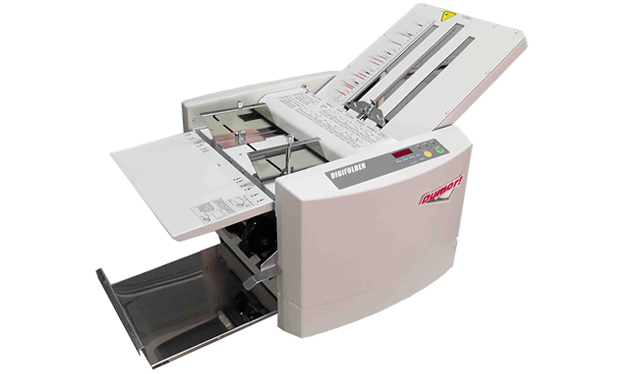

MODEL EF210
Features:
- With diagnostic display to detect nature the where aborts of errors
- Accurate paper feeding by dual feed rollers.
- Equipped with a 4-digit add, subtract & automatic repeat counter.
- High speed accurate folding over 8,000 sheets per hour (A4, single fold).
- Easy maintenance by adoption of removable fold rollers for cleaning /or replacement.

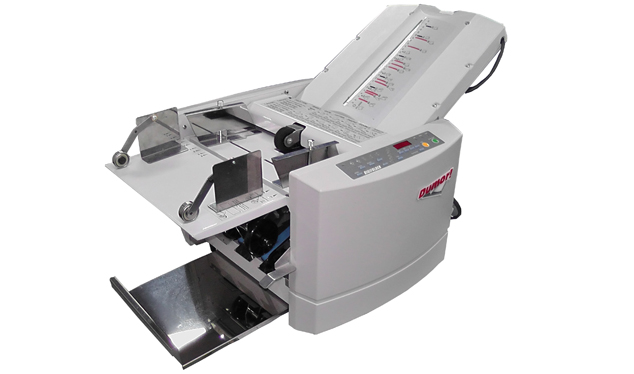

MODEL EF250
Features:
- Paper Feed Tray will automatically elevate to ensure suitable feed pressure once papers are placed on it.
- Paper Ejection Roller will automatically adjust the roller position for assuring the smooth proper ejection of folded paper.
- 36 memories for odd paper size folding patterns will automatically be stored by touching the memory key in addition to the 36 kinds of memories.
- Non-standard size paper can be folded automatically by entering the overall paper length.
-Fully automatic setting paper folder with up to 36 customer set-up plus memory functions.
- Paper feed skew adjustment.
Model |
EF 210 |
EF 250 (Auto Plate) |
Installed size: |
820 x 530 x 520mm |
870 x 530 x 520mm |
Fold speed: |
3000 – 10000 pcs/h |
7000pcs/h |
Net weight: |
27kg |
28.5kg |
Gross weight: |
30kg |
32kg |
Tray capacity: |
500pcs (64g) |
Power supply: |
220V / 50Hz / 50W |
Paper size: |
91 x 128 – 320 x 430mm |
Paper weight: |
45 – 157g |
Folder pattern: |
Half, double half, Z, offset, letter, cross (double in feed) |
