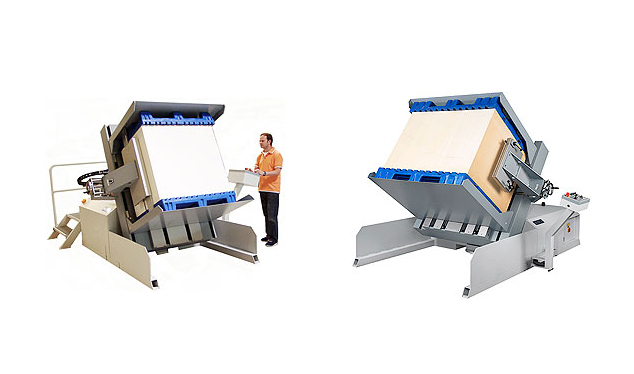

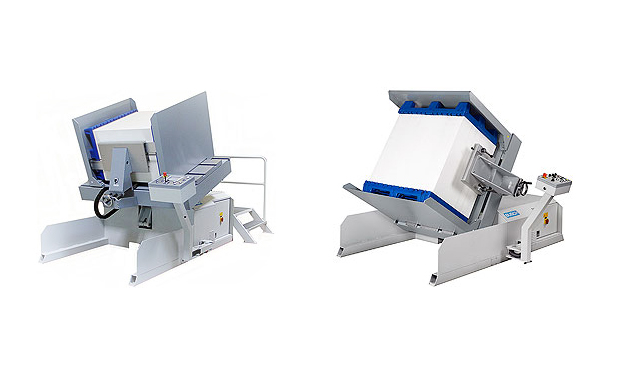

Pile Turners
Turning
A complete pile can be turned in just over 1 minute, saving valuable time on work-and-turn or work-and-tumble jobs. A pile turner is also invaluable for turning work to present to the folder or the laminator.
Airing
Before Printing
There are considerable advantages to airing the piles before printing: |
|
separating sheets to minimize mix-feeds |
|
removing paper dust |
|
conditioning the material, where temperature and humidity vary |
After Printing
A faster turnaround can be achieved with the use of a pile turner: |
|
ink and varnish dries more quickly after airing |
|
surplus spray powder is removed (essential when sending work for lamination) |
|
airing helps to neutralize taint & odors in food packaging from the UV process |
Aligning
The aligning gauge acts as the side-lay, and can be set to whichever side-lay each press is running. The pile is then aligned to two straight edges. If needed the aligning gauge can also be used to center piles on larger-sized pallets. Perfect alignment of paper and board is achieved.
Jogging
Perfect alignment results from jogging and airing in the tilted position (15°), even where the pile has moved in transit or been badly-delivered. When used with airing it is possible to remove single sheets of 80 gsm paper from the middle of the pile – when it is in the horizontal position.
Limited Budget or Space?
When you need a pile turner but have a limited budget or space, then the SE 90 and SE 125 are ideal. |
|
both models turn paper and board piles (without airing or jogging) |
|
suitable for smaller areas than other Busch pile turners |
Compared to the SE 90 the SE 125 has an optional enlarged opening width for higher piles up to 1750mm and increased carrying power.
|
BUSCH Pile turner Series
|
Model |
SE 90 |
SWH 90 LA |
SWH 90 RLA |
|
Max. sheet size (mm) |
540 x 740 |
540 x 740 |
540 x 740 |
|
Features |
|
|
|
|
- Turning |
Yes |
Yes |
Yes |
|
- Airing |
No |
Yes |
Yes |
|
- Aligning |
No |
Yes |
Yes |
|
- Jogging |
No |
No |
Yes |
|
Pressure control flaps |
Optional |
Yes |
Yes |
|
Air blowers |
0 |
1
An additional blower is optional |
1
An additional blower is optional |
|
Electrical air vol. control |
No |
Optional |
Optional |
|
Carrying power (Kg) |
500 |
500 |
500 |
|
Platform width (mm) |
900 |
900 |
900 |
|
Platform depth (mm) |
625 |
625 |
625 |
|
Max pile height(1) (mm) |
1200 |
1200 |
1200 |
|
Min pile height(1) (mm) |
290 |
450 |
540 |
|
Power requirements (KW) |
1.3 |
3.4 |
3.4 |
|
Length (mm) |
2140 |
2150 |
2150 |
|
Width (mm) |
|
|
|
|
- Control desk right |
1950 |
2170 |
2170 |
|
- Control desk left |
1950 |
2390 |
2390 |
|
Height(2) (mm) |
1790 |
1760 |
1760 |
|
Net weight (Kg) |
710 |
1030 |
1030 |
|
Model |
SE 125 |
SWH 125 LA |
SWH 125 RLA |
|
Max. sheet size (mm) |
800 x 1200 |
800 x 1200 |
800 x 1200 |
|
Features |
|
|
|
|
- Turning |
Yes |
Yes |
Yes |
|
- Airing |
No |
Yes |
Yes |
|
- Aligning |
No |
Yes |
Yes |
|
- Jogging |
No |
No |
Yes |
|
Pressure control flaps |
Optional |
Yes |
Yes |
|
Air blowers |
0 |
1
An additional blower is optional |
1
An additional blower is optional |
|
Electrical air vol. control |
No |
Optional |
Optional |
|
Standard opening height (mm) |
1350 |
1350 |
1350 |
|
Increased opening height (mm) |
Optional – 1750 |
Optional– 1750 |
Optional – 1750 |
|
Carrying power (Kg) |
1000 |
1000 |
1000 |
|
Platform width (mm) |
1250 |
1250 |
1250 |
|
Platform depth (mm) |
900 |
900 |
900 |
|
Max pile height(1) (mm) |
1350 |
1350 |
1350 |
|
Min pile height(1) (mm) |
380 |
650 |
650 |
|
Power requirements (KW) |
1.7 |
4.8 |
5.5 |
|
Length (mm) |
2462 |
2527 |
2527 |
|
Width (mm) |
|
|
|
|
- Control desk right |
2205 |
2585 |
2585 |
|
- Control desk left |
2205 |
2815 |
2815 |
|
Height(2) (mm) |
2060 |
2095 |
2095 |
|
Net weight (Kg) |
1030 |
1430 |
1495 |
|
Model |
SWH 155 |
SWH 155 LA |
SWH 155 RLA |
|
Max. sheet size (mm) |
1020 x 1420 |
1020 x 1420 |
1020 x 1420 |
|
Features |
|
|
|
|
- Turning |
Yes |
Yes |
Yes |
|
- Airing |
No |
Yes |
Yes |
|
- Aligning |
No |
Yes |
Yes |
|
- Jogging |
No |
No |
Yes |
|
Pressure control flaps |
Optional |
Yes |
Yes |
|
Air blowers |
0 |
4 |
4 |
|
Electrical air vol. control |
No |
Optional |
Optional |
|
Standard opening height (mm) |
1600 |
1600 |
1600 |
|
Increased opening height (mm) |
Optional – 2000 |
Optional– 2000 |
Optional – 2000 |
|
Carrying power (Kg) |
1800 |
1800 |
1800 |
|
Platform width (mm) |
1550 |
1550 |
1550 |
|
Platform depth (mm) |
1080 |
1080 |
1080 |
|
Max pile height(1) (mm) |
1600 |
1600 |
1600 |
|
Min pile height(1) (mm) |
760 |
830 |
830 |
|
Power requirements (KW) |
3.2 |
14.3 |
15.0 |
|
Length (mm) |
3120 |
3120 |
3120 |
|
Width (mm) |
|
|
|
|
- Control desk right |
2735 |
2925 |
2925 |
|
- Control desk left |
3085 |
3285 |
3285 |
|
Height(2) (mm) |
2550 |
2550 |
2550 |
|
Net weight (Kg) |
2050 |
2440 |
2540 |
|
Model |
SWH 180 |
SWH 180 LA |
SWH 180 RLA |
|
Max. sheet size (mm) |
1220 x 1620 |
1220 x 1620 |
1220 x 1620 |
|
Features |
|
|
|
|
- Turning |
Yes |
Yes |
Yes |
|
- Airing |
No |
Yes |
Yes |
|
- Aligning |
No |
Yes |
Yes |
|
- Jogging |
No |
No |
Yes |
|
Pressure control flaps |
Optional |
Yes |
Yes |
|
Air blowers |
0 |
4 |
4 |
|
Electrical air vol. control |
No |
Optional |
Optional |
|
Standard opening height (mm) |
1600 |
1600 |
1600 |
|
Increased opening height (mm) |
Optional – 2000 |
Optional– 2000 |
Optional – 2000 |
|
Carrying power (kg) |
1900 |
1900 |
1900 |
