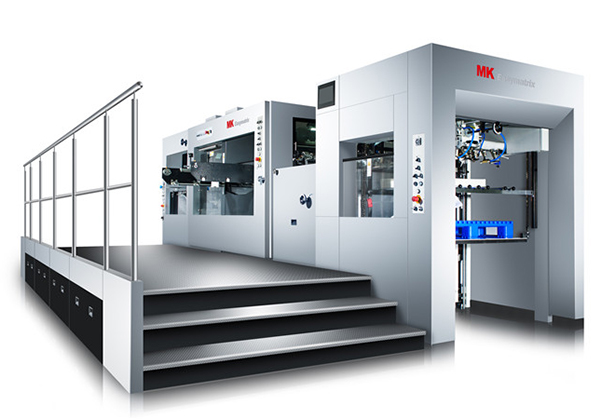

Easymatrix 106C CS


MÁY BẾ + CHỌC PHÔI - Easymatrix 106C CS

Based on 7700s/h for format of 1060mm on Easymatrix 106C/CS, higher productivity and lower cost is available for you.
This machine fits not only for paper or cardboard of 90~2000g/m²,but also for corrugated board less than 4mm.
With high precision of cutting/stripping on Easymatrix 106C/CS, your production will be more easier and efficient.
It is the best approach for your cutting work.

Product Features

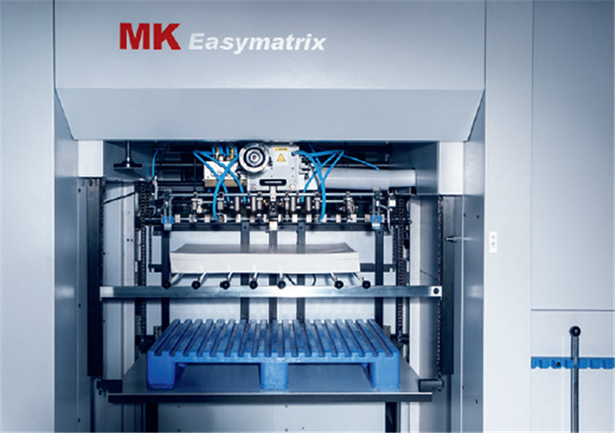

Non-stop Feeder
- Suction head for paper, board and corrugated board
- Suction head with quick positioning function
- Pile platform with motorized side pile alignment
- Mechanical double sheet detection

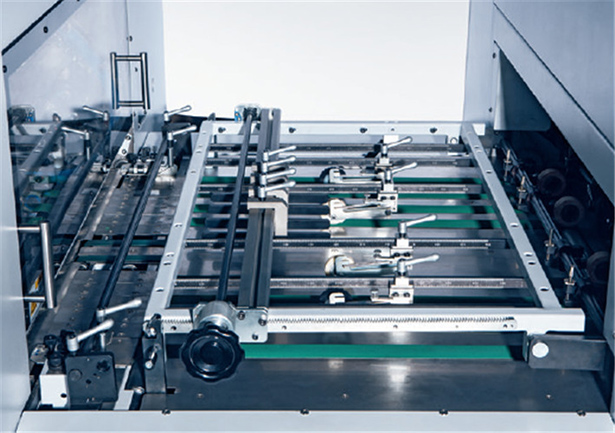

Feed Table
- Register system
- Central adjustment system for rollers and brushes
- Pull/push side lay on both sides
- Four front lays with active optical monitoring
- Sheet slow down device

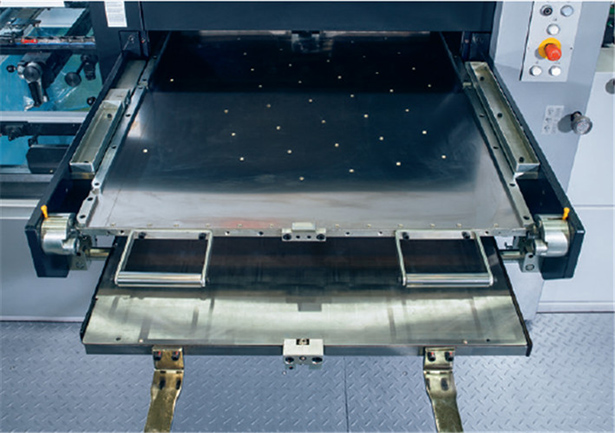

Die-cutting Station
- Register system
- Motorized cutting pressure adjustment
- Cutting plate fine adjustment
- Air cushion for easy cutting plate handling
- Quick lock chase
- Chase Changer (optional)

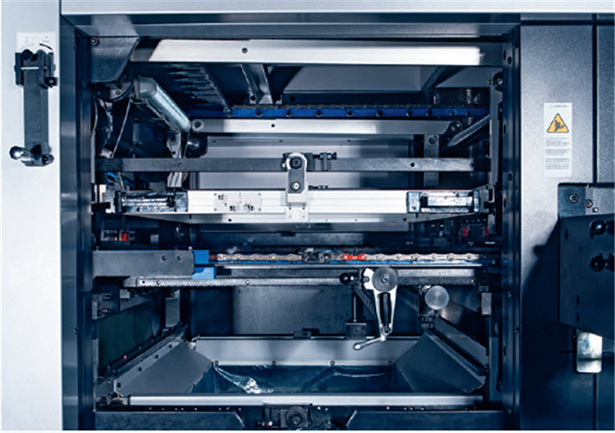

Stripping Station
- Quick lock device for middle stripping board
- Electronic sheet monitoring
- Quick lock frame (optional)
- Pre-make-ready table (optional)

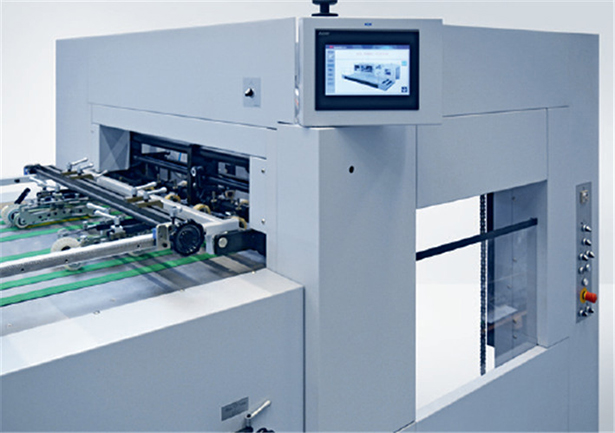

Systems Engineering
- Touch Screen for machine operation
- Local operations panels
- CE conformity
- GS certificate

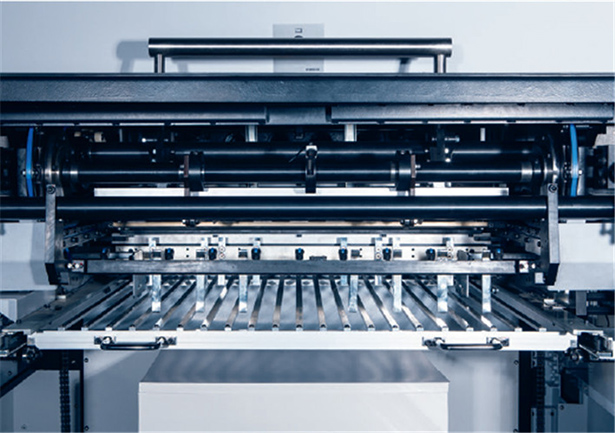

Delivery
- Non-stop rake
- Pneumatic flap for test sheet removal
- Sheet size adjustment with position indicators
- Sheet brake brush
- Tape inserter (optional)




Technical Parameter

Suitable material:
Paper (min.) 90g/m2
Carton Board (max.) 2,000 g/m2
Corrugated Board (max.) 4 mm
Performance data:
Sheet size (max.) 750x 1,060 mm
Sheet size (min.) 360 X 400 mm
Cutting pressure (max.) 2.6 MN / 260t
Machine speed (max.) 7,700 s/h
Pile heights (incl. Pallet):
Feeder pile height (max.)
- w/o non-stop 1 ,200 mm
- with non-stop operation 900mm
Delivery pile height (max.) 1 ,200 mm
