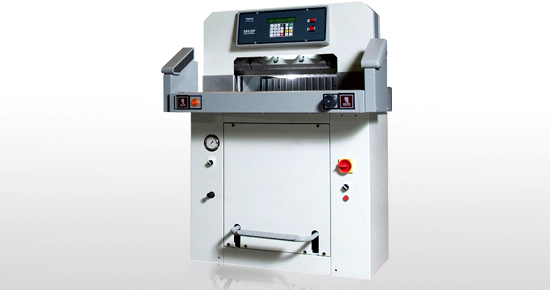

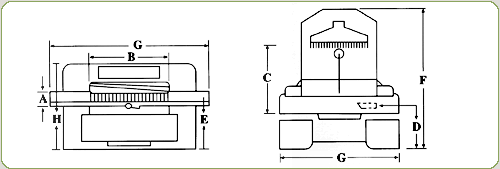

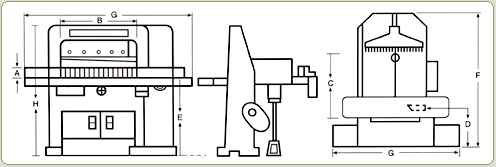

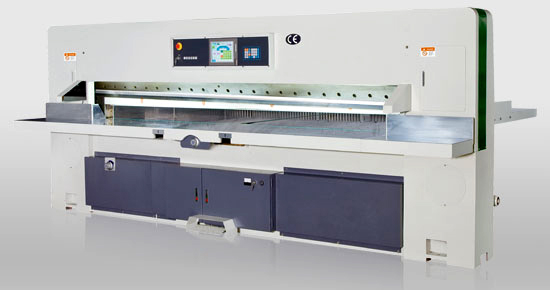

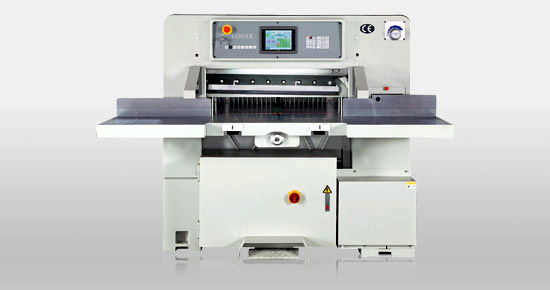

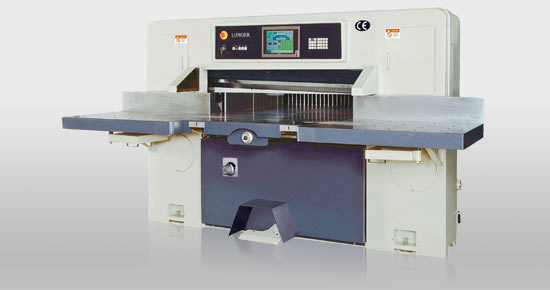

Paper cutting machine LG-P Series LG-P1 /Hydraulic paper cutting machine Specification 550 A Cutting Thickness mm 95 B Cutting Width mm 550 C Cutting Length mm 550 D Front Table Length mm 450 E Table Height mm 900 F Total Machine Length mm 1350 G Machine Width mm 960 H Machine Height mm 1350 Electrical Supply As required Main Motor KW 2 Paper Feeding Motor KW 0.1875 Net Weight kg 320 Measurement mm 960x1350x1350 LG-P2 /Micro computer paper cutting machine Specification 660 720 800 A Cutting Thickness mm 120 120 120 B Cutting Width mm 660 720 800 C Cutting Length mm 660 720 800 D Front Table Length mm 540 540 540 E Table Height mm 900 900 900 F Total Machine Length mm 1720 1780 1860 G Machine Width mm 1510 1570 1570 H Machine Height mm 1470 1470 1470 Electrical Supply As required As required As required Blade Motor KW 1.5 1.5 1.5 Clamp Motor KW 1.5 1.5 1.5 Paper Feeding Motor KW 0.375 0.75 0.75 Air Table Motor* KW 0.2 0.2 0.2 Net Weight kg 1500 1600 1800 Measurement mm 1900x1700x1600 2000x1800x1600 2100x1860x1650 LG-P3 /Micro computer high-speed paper cutting machine Single arm type/ Dual ams type Specification 1150 1210 1370 1420 1550 1600 1800 A Cutting Thickness mm 160 160 160 160 160 160 160 B Cutting Width mm 1150 1210 1370 1420 1550 1600 1800 C Cutting Length mm 1150 1210 1370 1420 1550 1600 1800 D Front Table Length mm 840 840 840 840 840 840 840 E Table Height mm 900 900 900 900 900 900 900 F Total Machine Length mm 2640 2690 2830 2880 3010 3060 3260 G Machine Width mm 2860 2910 3065 3120 3250 3300 3500 H Machine Height mm 1650 1650 1650 1650 1650 1650 1650 Electrical Supply As required As required As required As required As required As required As required Blade Motor KW 2.25 2.25 3.75 3.75 3.75 3.75 5.625 Clamp Motor KW 1.5 1.5 1.5 1.5 1.5 1.5 1.5 Paper Feeding Motor KW 0.75 0.75 0.75 0.75 0.75 0.75 0.75 Air Table Motor* KW 0.375 0.375 0.75 0.75 0.75 0.75 0.75 Net Weight KG 4000 4200 4800 4900 5300 5500 6000 LG-P4 / Hydraulic paper cutting machine Specification 2200 2600 3000 A Cutting Thickness mm 150 150 150 B Cutting Width mm 2200 2600 3000 C Cutting Length mm 2200 2600 3000 D Front Table Length mm 840 840 840 E Table Height mm 900 900 900 F Total Machine Length mm 3660 4060 4460 G Machine Width mm 3900 4300 4700 H Machine Height mm 1800 1800 1800 Electrical Supply As required As required As required Blade Motor KW 5.625 7.5 7.5 Clamp Motor KW 3.75 3.75 3.75 Paper Feeding Motor KW 0.75 0.75 0.75 Air Table Motor KW 0.75 0.75 0.75 Net Weight KG 7600 8600 10800 *Technical data to change without notice
