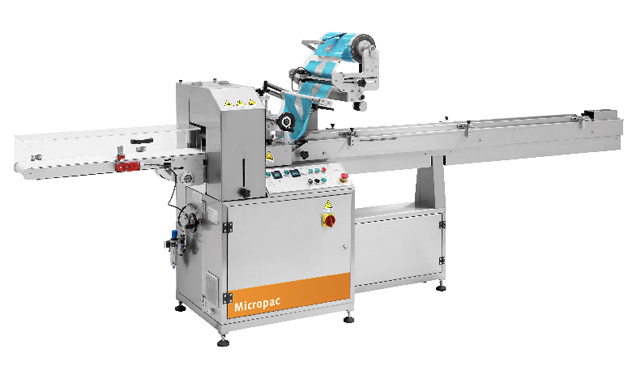

- Stainless steel main frame and carters protection
- 1500 length and 200 mm width in-feed conveyor
- All surfaces in contact with product are stainless steel
- Snap on plastic pushers suitable for food use
- Replaceable sprockets to obtain different pitches of in-feed conveyor
- Mechanic gear box to adjust the bag length
- Toothed shaft suitable to set-up the machine according to the products' length
- Safety covers manufactured in plastic material with safety micro-switches
- 200 mm wide rotating jaw, with inclined knife controlled by electronic thermo-regulator
- Longitudinal sealing unit equipped with two sets of pinwheels: first to drive, second controlled by electronic thermostat to seal, and one pair to fold the bottom-seal
- Adjustable speed by potentiometer
- Universal forming tunnel
- 900 mm out-feed belt

ALSO AVAILABLE: Automatic feeding systems, labelers, printers and print registration.

Technical:

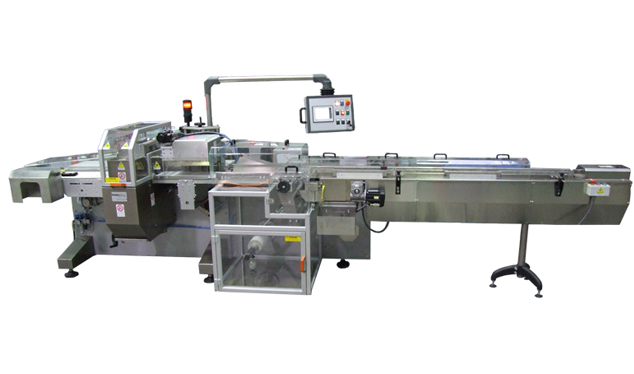

- Horizontal packing machine, reverse reel holder, suitable for heat sealable films
- Conveyor belt with pushers for product's feeding 2500 mm long and 300 mm wide with stainless steel top
- Bottom film reel holder up to 600mm wide
- Universal forming tunnel with manual adjustment in width
- Cross sealing jaws with sealing jaws up to 350mm width adjustable in height
- Fin seal unit with two pre-heated wheels, two sealing wheels and two folding wheels
- Safety guards in plastic material with safety switches
- Transport belt under the sealing wheels to carry the product to the sealing jaws
- Exit belt 900 mm long
- Servo motor control for 4 driving motors and namely:
> 1. Cross sealing drive unit
> 2. Longitudinal sealing drive unit
> 3. Transport belt under the sealing wheels
> 4. Feeding conveyor belt drive unit
- PLC with Iman Pack operator's interface
- Pneumatic components

Technical:

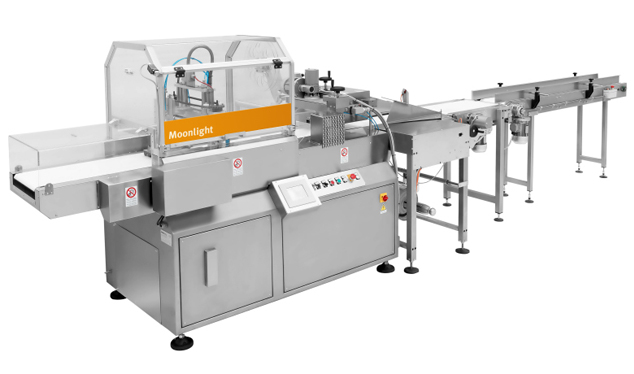

Moonlight is a horizontal wrapper equipped with brushless motors synchronized with multi-axis motion control (each one of them drives a specific function of the machine).

Is available in versions for polyethylene film or a heat sealable material, with film reel from the bottom or top.

- Main frame stainless steel construction
- Axis control for 4 motorizations by brushless motors for:
> cross sealing jaws stroke
> longitudinal sealing wheels
> transport belt through the sealing jaws
> in-feed conveyor
- User friendly keyboard control panel
- Control panel on machines’ frame
- Universal forming tunnel adjustable by hand wheel
- 2500 mm long chain pitch in-feed conveyor
- Longitudinal sealing assembly adjustable in height with 2 pairs of sealing wheels and one pair to fold the fin seal
- Cross sealing jaws adjustable in height
- Sealing time adjustable by PLC

Technical:



Starlight is the newest and ultimate in Imanpack's horizontal electronic form, fill and seal series. This long-time sealing wrapper is designed to meet the specific needs of customer.

Starlight is highly engineered and user friendly and guaranteeing reliability, flexibility, high production speed, easy maintenance and cleaning.

- Fully servo-driven with all independent brushless servo-motors
- Friendly operator's interface to ensure maximum simplicity in use
- Up to 20 programs memory to reduce set-up and change over times
- Automatic working set-up according to desired output
- Key-pad and LCD control plan, swing arm mounted
- Simple integration with different in-feed systems
- No product, no bag
- No gap, no seal

ALSO AVAILABLE: Automatic feeding systems, labelers printers and gas flushing systems.

Technical:
