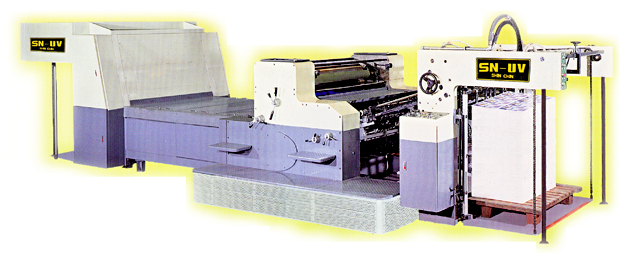

SN-UV UV Full/Spot Coating Machine
-
Multi function full/spot coating machine with gripper chain delivery system
-
High speed feeder
-
Fully automatic cylinder engage/disengage mechnism
-
Maximum machine speed at 10,000 sheets/h
-
Double size pressure cylinder
-
Equipped with UV and / or IR curing system
-
Sophisticated photo cell in front lay and side guide detection to ensure accurate registration
-
Quick blanket change
-
Extended length flow-out for UV curing effect
-
Non-stop delivery with cooling fans system
|
SPECIFICATION |
SN-UV |
|
MAX.SHEET SIZE |
720mm*1020 mm |
|
MAX. COATING SIZE |
710mm*1010 mm |
|
BLANKET SIZE |
1.9t*1030mm*1030mm |
|
THICKNESS OF SHEET |
0.12mm~0.65 mm (~0.85 OPTION) |
|
MECHANICAL SPEED |
10000 SHEETS/HR |
|
PILE HEIGHT OF FEEDER |
1000mm |
|
PILE HEIGHT OF DELIVERY |
1100mm |
|
MAX. WEIGHT OF PAPER STACK |
1000kgs |
|
RATED POWER OF MAIN MOTOR |
10HP 7.5kw |
|
TOTAL POWER REQUIRED |
16kw - U.V 39kw - I.R. 12kw |
|
NET WEIGHT |
12,600kgs |
|

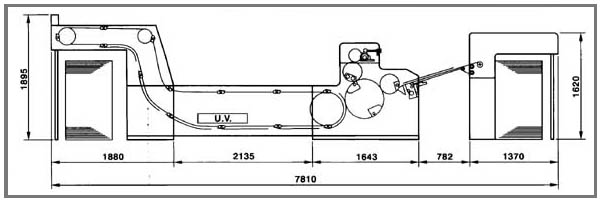

DIMENSION(L*W*H)mm |
7810*3075*1895 |
