Máy cắt giấy Schneider - Senator

Máy dao xén giấy Schneider Senator


E-Line 78 & 92

High performance for small sizes
Small format cutting requires absolute precision and reliability. Schneider Senator E-Line meets these challenges. The machines for cutting widths of 780 and 920 mm provide highest energy efficiency and offer various quality advantages Schneider Senator is known for.
The new E-Line is absolutely silent in stand-by mode.
Power is only consumed during cutting.

E-Line 92
  • Schneider Senator E-Line 78 and 92 with mechanical knife drive and hydraulic clamp bar
  • Computer-control with 15“ TFT-display
  • Frequency-controlled back gauge drive with ball-screw spindle
  • Closed rear table – with hinged rear table cover
  • Solid cast iron frame
  • Infrared safety barriers
  • Safety-bolt
  • Rust-proof cutting table with air film and stainless steel surface
  • Side tables -  left and right-hand -  with air film and stainless steel surface
  • Optical cut indicator
  • Knife change and adjustment at the front side
  • 2 knives
  • 5 Sinus-cutting sticks
  • Clamp bar cover plate
  • Ergonomic cut buttons
  • Tools
  • Colour: RAL 7035, light grey
  • CE & EN 1010 conform
  • Option:
    -Multifunctional hand wheel for back gauge adjustment

Proven technology -  systematically developed
Development of E-Line guillotines includes a high degree of user friendliness.
Knife change and adjustment is made from the front side. The knife pull rod never needs an adjustment. Lubrication points are easily accessible. Operation is learned easily and quickly.

Technical Data: 78 92


A Cutting width, mm/inch 780 920
B Feed depth, mm 780 920
C Clamp opening, mm 120 120
D Table height, mm 900 900
E Machine width, mm – without side tables 1.620 1.675
F Machine width, mm – with side tables (BN) 1.719 1.835
G Machine depth, mm 1.811 1.992
H Machine height, mm 1.615 1.620
I Front table length, mm 657 657
K Side table depth, mm (BN) 471 471
L Side table width, mm (BN) 436 436
  Side table depth (LST 750), mm 750 750
  Side table width (LST 750), mm 750 750
  Power required, max. kW 3,8 5,5
  Net weight, kg 1.550 1.720
  Clamp pressure min., daN 100 100
  Clamp pressure max., daN 2.500 3.000
  Knife thickness, mm 12 12
  Smallest cut, mm – with false clamp plate (optional 50) 65 80
  Smallest cut, mm – without false clamp plate 20 25
  Back gauge speed, mm/s 225 225
  Static floor load, daN/m² 590 605
  Contact area load, daN/cm² (+/- 12%) 1,9 2,1
Subject to technical modifications, errors excepted




Máy dao xén giấy Schneider Senator


S-Line 115H, 137H, 155H

Fully hydraulic
High cutting accuracy up to the last sheet
Faster, more precise, more economical – these are the attributes Schneider Senator S-Line is known for. The patented direct-hydraulic drive concept sets new standards for the performance of cutting machines.
A high level of safety is guaranteed for the knife change.

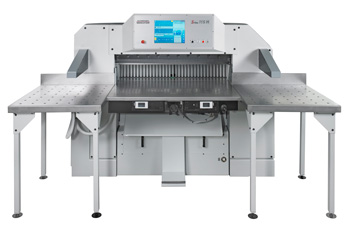

S-Line 115H
  • Fully hydraulic drive
  • Computer-control with 15“ TFT-display
  • Solid cast iron frame
  • Infrared safety barriers
  • Rust-proof cutting table with air film and stainless steel surface, with blower
  • Automated knife change at the front (AKC) into a patented knife change cassette
  • Clamp pressure adjustment via display, programmable and controlled by proportional valve
  • Program correction function, linear and percentagewise
  • Optical cut indicator
  • 2 knifes (HSS quality)
  • 5 sinus cutting sticks
  • Slot cover
  • Clamp bar cover plate
  • Tools
  • Colour: RAL 7035, light grey
  • CE & EN 1010 conform
  • Options:
    -TrimmMaster (automatic waste removal)
    -Swinging and/or tilting back gauge, program-controlled
    -Downholder at the back gauge, program-controlled
    -Lay edge control, program-controlled
    -Retractable rear cover, electrically locked
    -Retractable side gauge
The machine with options represents a unique, high-performance solution.

Patented power plant
Inside the compact and modern cast iron frame works the heart of the S-Line – the patented hydraulic knife drive with direct twin cylinder arrangement. The knife is drawn from the bottom for being guided through the stack instead of being guided from above. This new technology ensures stable cutting force and uniform high speed.  And with the patented precision linear guides of the knife carrier an optimum cutting accuracy is achieved.  Discrepancies in the knife’s movements are reduced to a minimum, thus extending the knife life.
The infinitely variable frequency-controlled back gauge drive achieves high speeds. The ball-screw spindle with precision linear guides operates practically wear-free, thus extending the maintenance intervals.

Technical Data: 115H 137H 155H


A Cutting width, mm                                     1.150 1.370 1.550
B Feed depth, mm 1.150 1.480 1.930
C Clamp opening, mm 170 170 170
D Table height, mm 900 900 900
E Machine width, mm – without Side table 2.020 2.240 2.420
F Machine width, mm – with Side table (BN) 2.020 2.240 2.420
G Machine depth, mm 2.287 2.767 3.247
H Machine height, mm 1.620 1.620 1.620
I Front table depth, mm 680 680 680
K Side table depth, mm (BN) 472 472 472
L Side table width, mm (BN) 435 435 435
  Side table depth (LST 750), mm 750 750 750
  Side table width (LST 750), mm 750 750 750
  Power required, max. kW 8 8 8
  Weight net, kg 2.750 3.350 3.650
  Clamp pressure, min., daN 400 400 500
  Clamp pressure, max., daN 4.500 4.500 5.000
  Knife thickness, mm 12 12 12
  Smallest cut, mm - with Clamp cover plate (optional 50) 90 90 90
  Smallest cut, mm - without Clamp cover plate manual 25 25 30
  Backgauge speed, mm/s 300 300 400
  Static floor load, daN/m² 756 691 596
  Contact area load, daN/cm² (+/- 12%) 9,2 11,2 12,2
Subject to technical modifications, errors excepted



Các tính năng kỹ thuật của hệ thống điều khiển


PCC-control (Power Cutting Control)



Control: PCC
PC suitable for the rough industrial application x
15-inch TFT colour touch screen display x
Storage capacity, number of programs unlimited by USB application
Safety logic proved and tested observing the highest safety standards x
Control of miscuts (stop of cut release in case of exceeding the positioning tolerance) x
Possibility for single cuts without interruption of the program course x
Change-over: inch / mm / cm x
Feeding precision: 1/100 mm x
Cut counter   x
Programmable cut counter, resettable x
Supply of air                                                                           x
Fault diagnosis x
Pocket calculator                                                             x
Time and date display   x
Deletion protection of programs           x
Data protection in case of power failure   x
Language selection  x
Program memory on a USB stick x
Ethernet interface for connection to a network x
Stand-by-function for the main drive (from series S-Line 115H on)  x

Programming options:
Single cut, repeat cut, program cut  x
Digitally adjustable and programmable pre-press time x
Digitally adjustable and programmable pressing power (from series S-Line 115H on) x
Difference dimension  x
Programming by value input or by actual value transfer x
Programmable feed speed of back gauge x
Clamping without cut x
Linear program correction x
Program correction in percentage terms
Automatic paper ejection and programmable ejection mark        x
Operator information                                      x
Cutting optimizer x

http://schneider-senator.com
