REEL TO REEL EMBOSSING MACHINE RSE-1150
|
RSE-1150 |
|
1. |
TENSION CONTRAL |
|
2. |
AUTOMATIC HYDRAULIC SYSTEM |
|
3. |
PAPER ROLLED UP DETECTIVE DEVICE |
|
4. |
ROLLER HEATING SYSTEM |
|
5. |
AUTOMATIC TEMPERATURE CONTROL SYSTEM |
|
6. |
HYDRAULIC BALANCE MICROADJUSTMENT |
|
SPECIFICATION |
RSE-1150 |
|
MAX. EMBOSSING WIDTH |
1150mm |
|
MECHANICAL SPEED |
40M/min |
|
PAPER THICKNESS |
80-300GSM |
|
ELECTRICAL HEATER |
6KW |
|
TOTAL POWER REQUIRED |
14KW |
|

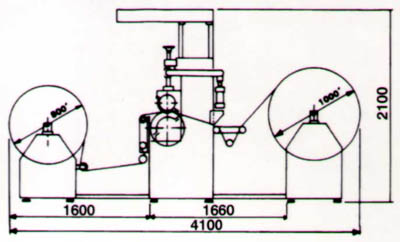

FLOOR SPACE(L*W*H)MM |
4100*2100*2100MM |
|
APPX.WEIGHT |
3000KG |
