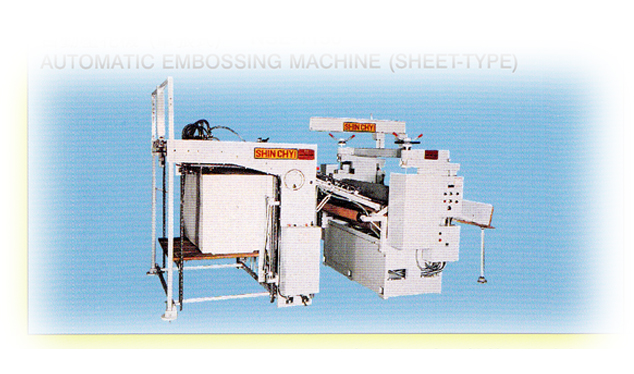

AUTOMATIC EMBOSSING MACHINE (SHEET - TYPE)
|
NSE-1150 |
|
1. |
STREAM FEEDER |
|
2. |
AUTOMATIC HYDRAULIC SYSTEM |
|
3. |
PAPER ROLLED UP DETECTIVE DEVICE |
|
4. |
ROLLER HEATING SYSTEM |
|
5. |
AUTOMATIC TEMPERATURE CONTROL SYSTEM |
|
6 |
HYDRAULIC BALANCE MICROADJUSTMENT DEVICE |
|
SPECIFICATION |
NSE-1150 |
|
EMBOSSING WIDTH |
1150mm |
|
MECHANICAL SPEED |
40M/min |
|
PAPER THICKNESS |
200-400GSM |
|
ELECTRICAL HEATER |
6KW |
|
TOTAL POWER REQUIRED |
14KW |
|

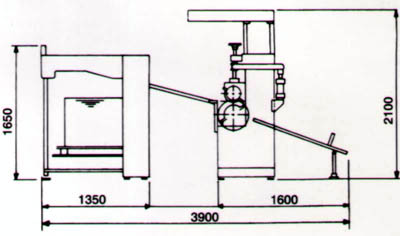

FLOOR SPACE(L*W*H)MM |
3900*2100*2100MM |
|
APPX.WEIGHT |
3000KG |
