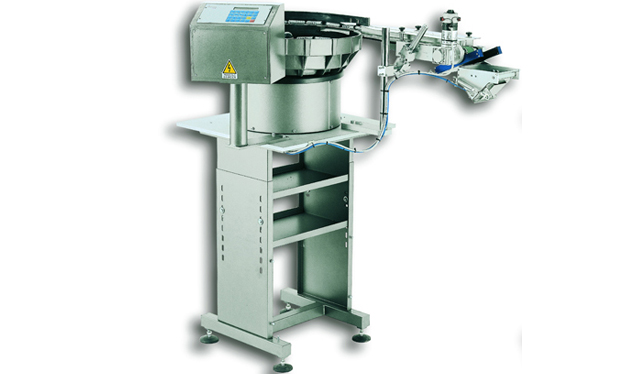

Counting Modules CMF5
Automatic Counting module
Counting module model CMF5 suitable to count in pre-set quantity screws, nails, rivets, etc.
FEATURES and PERFORMANCES:
- Torsional electromagnetic vibrator diam. from 350 mm to 900 mm
- Electronic panel with modular cards
- Controlled by Imanpack microprocessor
- Photoelectric light barrier suitable to count all products
- Support frame equipped with level screws adjustable in height
- Monitorized transport belt with different speeds to select products. Container with two adjustments for selection of the products
- Rotating plate for screws complete with anti-stop clutch
- Check weigher Zero Defect (optional)
- Easy to connect to conveyors, wrappers
Technical:
|
Speed : |
up to 100 pieces/min |
|
Installed power : |
1 kW - Voltagge 400 V - 3ph + PE |
|
Compressed air : |
6 bar |
|
Air consumption : |
80 lt./min |

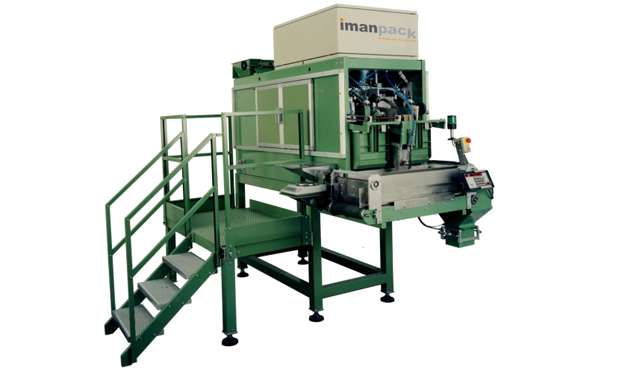

MCWS 3 TWIN
Weigh/Count Scale
Weigh / Count scale suitable to weigh and count hardware products such as screws, nuts, bolts, washers, fittings, nails, plastic components, and stampings.
The microprocessor control guarantees the max speed.
- Product mm. thickness steel.
- Stainless steel or polyurethane lining, under customer request..
- Feeding Hopper 40 lt
- N.2 pre-feeding vibrating channels controlled by mobile detector.
- N.2 intermediary vibrating channels suitable to feed constantly rough channels and the fine-feed channels.
- N. 2 rough channels with pneumatic flow restriction flaps.
- Final weight by counting with rollers driven by D.C. motor and with microprocessor.
- Weighing basket of 12 lt with pneumatic driven opening system.
- N. 2 Weigh heads equipped with load cell which is mechanically protected against overload.
Technical:
|
Speed : |
up to 15 Cycles / min |
|
Product lenght : |
Screw Ø Min. M5, length min. 10 mm
Screw Ø Max. M22, length max. 160 mm
Nut Min. M6, max. M24 |
|
Installed power : |
6,5 kW - Voltage 400 V - 3ph + PE |
|
Compressed air : |
6 bar |
|
Air consumption : |
100 lt./min |
|
Max dose weight : |
from 1 kg to 15 kg |
