Máy hút bột phun

Spray Powder Extraction System

  • Suitable for all sheet-fed offset presses with high pile delivery
  • Top and bottom extraction
  • Automatic and manual extraction functions available
  • Maintain a clean press environment
  • 3 extraction strength settings to cater for various paper stock thickness
Technical Specifications Top Unit Bottom Unit
Power 3 Phase 380V 3 Phase 380V
HP 2.2kw 2.2kw
Collection Capacity ~8.5L ~16.0L
Net Weight 90kg 60kg
L×W×H 1420×760×590(mm) 610×700×1910(mm)

Các sản phẩm:

Máy xả cắt giấy cuộn

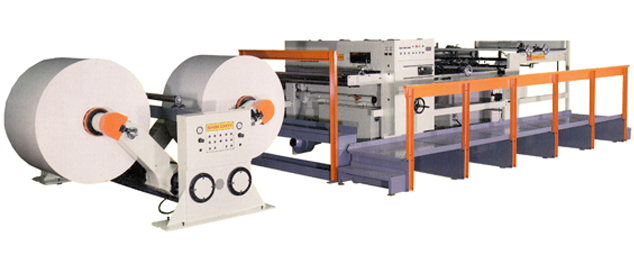

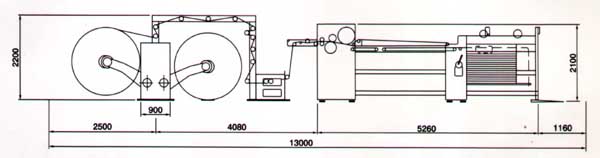

ROTARY SHEETER SCR-1400      SCR-1600

  • Hydraulic shaft-less reel-stand
  • Edge/roller decurler
  • Tab inserter with counter
  • Torque limiter on knife cylinder
  • Static eliminator system
  • N.C. HMI system
  • Dust collecting system
  • E.P.C. system
  • Auto tension control
  • Paper mill seaming detective

SPECIFICATION SCR-1400 SCR-1600
MAX. WEB DIAMETER 1600mm 1600mm
MAX. WEB WIDTH 1400mm 1600mm
CUT OF RANGE MAX. MIN. 1500mm 400mm 1500mm 400mm
MECHANICAL SPEED 300M/min 300M/min
MAX. PILE HEIGHT 1200MM 1200MM
INCLUDING PALLET 1500KG 1500KG
MAX. PILE WEIGHT 4KW 4KW
INCLUDING PALLET 27KW 30KW
SHAFTLESS HYDRAULIC 13000*4100*2200 13000*4100*2200
SIDE TRACKING REELSTAND 11600KG 12500KG

Các sản phẩm:

Máy dao xén giấy
