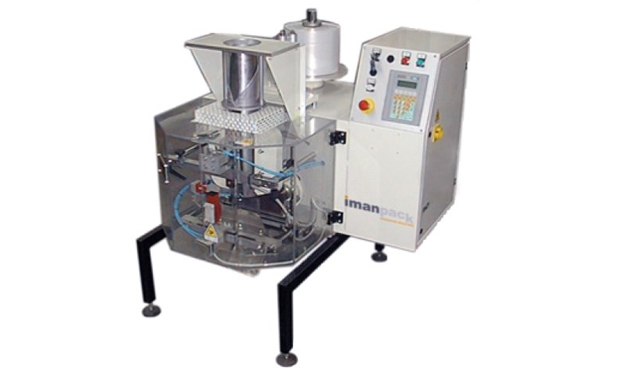

MFW 2000
Vertical bagging machine
Vertical bagging machine suitable for packaging a variety of products, using pre-folded polyethylene film.
The machine can be inclined when packaging product require gentle handling, thus providing great flexibility.
It can be integrated with various types of feeding devices such as weight scales, inclined belts, volumetric dozers, etc.
- Stainless steel forming tubes
- Powered film unwinding belts
- Bag length control by encoder
- Special sealing system for polyethylene film
- Pneumatic-driven sealing jaws
- Pneumatic devices
- Length control Package
- Length control doubles Package
Equipped with seal cooling system, bag length control and double bag length control.
Technical:
|
Speed : |
up to 15 bag/minute |
|
Electronic platform : |
Allen Bradley ® |
|
Bag size : |
Width: min 80 mm - max 270 mm
Length: min 40 mm - max 240 mm |
|
Film reel core diam : |
76 mm |
|
Film reel outer diam : |
fino a 350 mm |
|
Film reel width : |
max 300 mm - 600 mm flat |
|
Wrapping material : |
polythene |
|
Installed power : |
2,3 kW - Voltage 400 V - 3ph + PE |
|
Compressed air : |
6 bar |
|
Air consumption : |
80 lt./min |

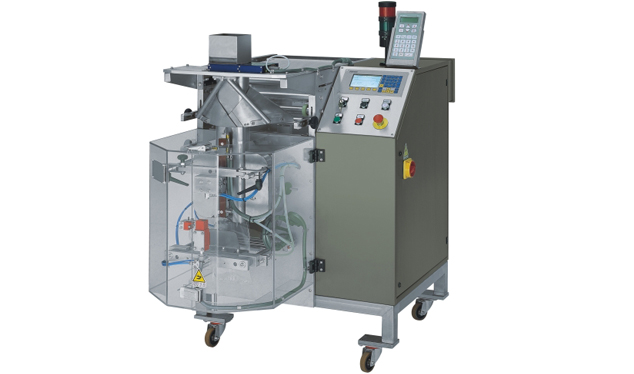

Microvert 2000
Form fills and seal wrapper
This vertical form fill and seal machine is suitable to pack different types of food product, general fastener and hardware products.
OPTIONS: Printers, support for heavy products, bags and chains
- Motorized reel holder activated by dancer bar
- Film draw form drive-belts with teeth
- Pouch length adjustment, encoder controlled
- Cross seal jaws pneumatically activated
- PLC driven system
- Pneumatic components
Technical:
|
Speed : |
up to 60 bag/min |
|
Electronic platform : |
Allen Bradley ® or Siemens ® |
|
Crimper width : |
250 mm |
|
Bag size : |
from 50 mm to 300 mm |
|
Film reel core diam : |
76 mm |
|
Film reel outer diam : |
up to 350 mm |
|
Film reel width : |
up to 400 mm |
|
Wrapping material : |
heat sealing or polythene |
|
Installed power : |
2,3 kW - Voltage 400 V - 3ph + PE |
|
Compressed air : |
6 bar |
|
Air consumption : |
80 lt./min |

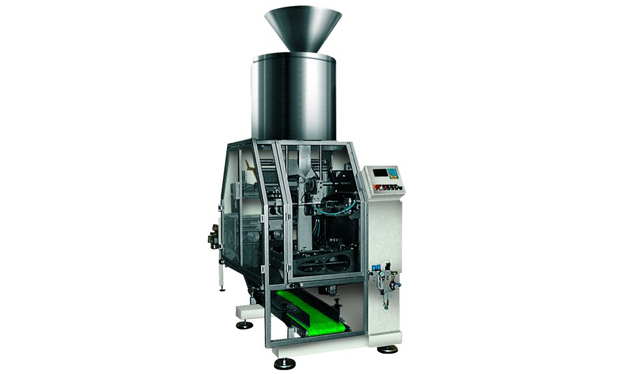

Servovert
High velocity, continuous operation machine
- Structure joints are welded and machine is painted with Ral 9002
- Embossed reel-holder with pneumatic blockage and adjustment handwell. Maximum reel capacity is 600 mm in length and 400 mm in diameter
- Motorized unrolling of film controlled by a servo-motor
- Easy to disassemble forming tube
- Fill pull mediated by ridged conveyor belt and longitudinal sealing assembly, which are controlled by servo-motion
- Conveyor belt and longitudinal sealing assembly pressure regulated by micrometric screws
- Sealing assembly with 400 mm press-plate controlled by servo-motors
- Pneumatic system allows balanced movement of the transversal sealing assembly
- Rhythm and packing time of the transversal sealing assembly may be varied
Technical:
|
Speed : |
fino 100 conf/min |
|
Electronic platform : |
Allen-Bradley ® |
|
Film reel core diam : |
76 mm |
|
Film reel outer diam : |
up to 350 mm |
|
Installed power : |
9 kW - Voltage 400 V - 3ph + PE |
|
Compressed air : |
6 bar |
|
Air consumption : |
100 lt./min |
