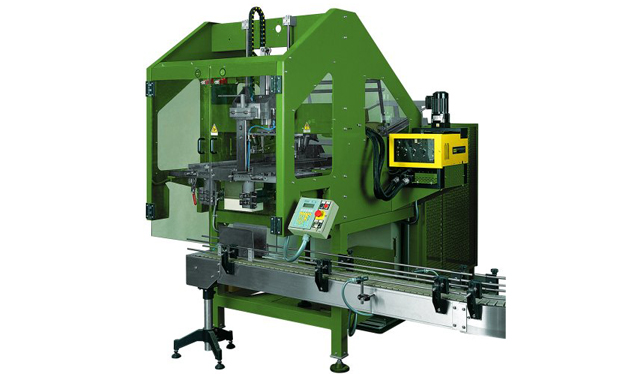

MTRF 2000
Automatic box and tray forming machine
Possibility of forming boxes or trays with hot-melt or by joint
Technical:
|
Speed : |
up to 40 boxes/min |
|
Electronic platform : |
Allen Bradley ® |
|
Product width : |
min. 60 mm - max 200 mm |
|
Product lenght : |
min. 60 mm - max 300 mm |
|
Product height : |
min. 30 mm - max 125 mm |
|
Bag size : |
Flat punched: max 650 mm x 650 mm. |
|
Installed power : |
2,5 kW - Voltage 400 V - 3ph + PE |
|
Compressed air : |
6 bar |
|
Air consumption : |
100 lt./min |

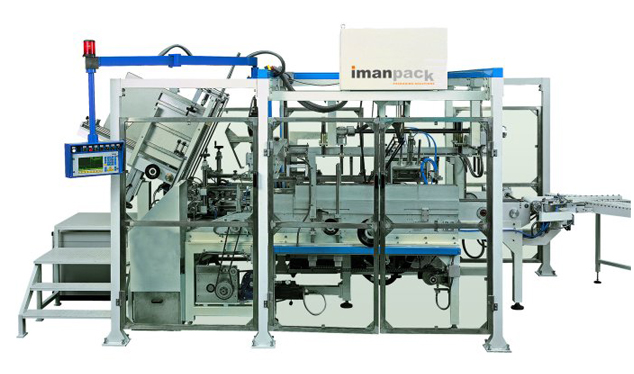

MCTN 2000
Intermittent Horizontal Cartoning Machine
All main movements are individually actuated by D.C. motor and controlled by a programmable microprocessor, in order to optimize all the work cycle phases in accordance to the type of
carton or product to be putted in.
- Modular conveyor for transportation and closing of cartons
- Adjustable or fixed magazine and device for cartons forming
- Adjustable flight conveyor or fixed size buckets conveyor
- Products are transferred from flighted conveyor into the cartons throughout a push-bar
Technical:
|
Speed : |
up to 50 bag/min |
|
Electronic platform : |
Allen Bradley ® |
|
Product width : |
min. 40 mm - max 200 mm |
|
Product lenght : |
min. 90 mm - max 300 mm |
|
Product height : |
min. 20 mm - max 70 mm |
|
Installed power : |
14 kW - Voltage 400 V - 3ph + PE (18 kW closed with glue) |
|
Compressed air : |
6 bar |
|
Air consumption : |
100 lt./min |

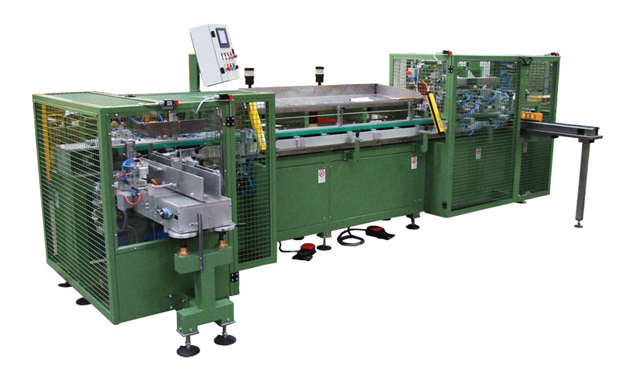

CTV 1000
Intermittent Vertical Cartoning Machine
Intermittent motion machine suitable to open, move, fill and close the boxes vertically.
The boxes are transported to the different station by an intermittent feeding chain. It is possible to use cartons with closing by hot melt glue or by joint.
- Base module complete with magazine, transport and boxes closing
- Chain complete with support for cups interchangeable upon type boxes
- Three phase motor variator output speed 10 to 35 boxes/min
- PLC driven system
Technical:
|
Speed : |
up to 35 boxes/min |
|
Electronic platform : |
Allen Bradley ® |
|
Product width : |
min. 35 mm - max 130 mm |
|
Product lenght : |
min. 72 mm - max 200 mm |
|
Product height : |
min. 28 mm - max 50 mm |
|
Installed power : |
2,5 kW - Voltage 400 V - 3ph + PE (4 kW closed with glue) |
|
Compressed air : |
6 bar |
|
Air consumption : |
80 lt./min |
