Powermatrix 106CSB

MÁY BẾ + CHỌC PHÔI + TÁCH LỀ - Powermatrix 106CSB

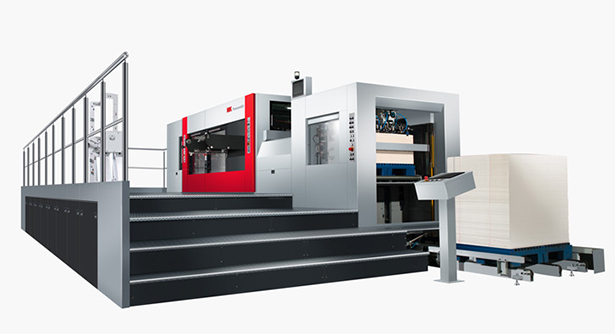

Powermatrix 106CSB is first new full-function blanking machine developed after the strategy cooperation between MK and HDM. More efficient solution is available for your plant based on the operation speed of 8,000s/h.

Product Features

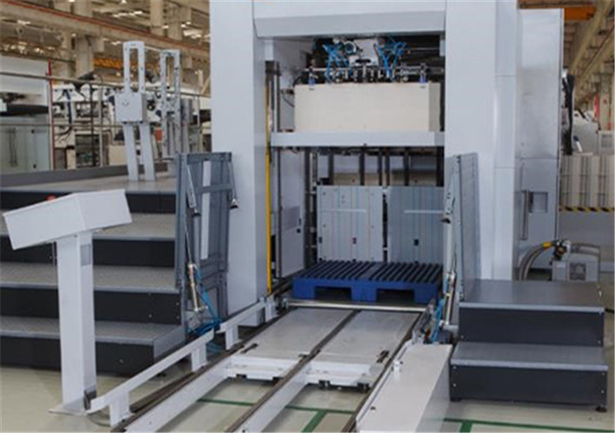

Non-stop Feeder
Standard: manual non-stop
Optional: auto-non-stop
Feeder logistic (option)
Suction head with quick positioning function
Automatic lateral pile regulation
Mechanical double sheet detection

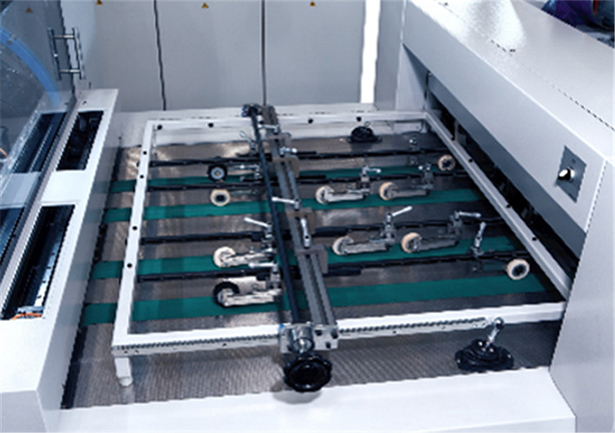

Feed Table
MasterSet (option) – optical sheet aligning system
Suction belt table
Central adjustment of rollers and brushes
Sheet slow down device
Register system

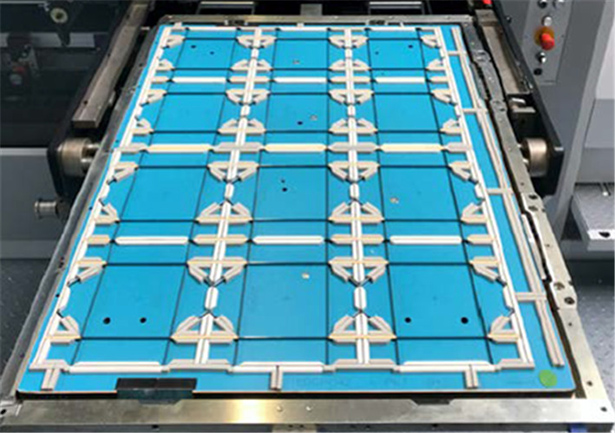

Cutting Station
Register system
Motorized cutting pressure adjustment
Pneumatic locking device for die-cutting chase and cutting plate
Cutting plate fine adjustment
Air cushion for easy cutting plate handling
Quick lock chase
Chase Changer (optional)

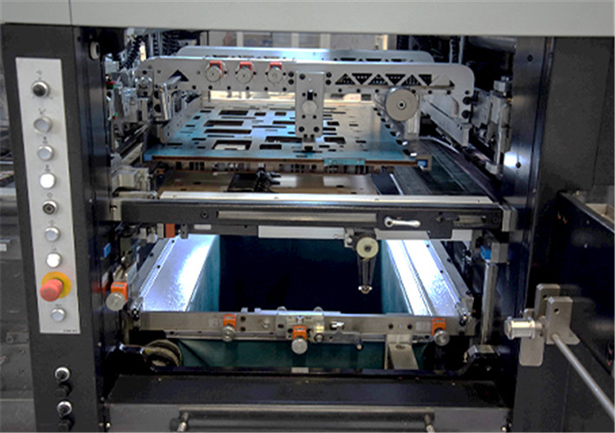

Stripping Station
Register system
Integrated quick lock systems for all tools (top, middle, bottom)
Fine adjustment of tools with position indicators
Test sheet removal
Pre-make-ready table (optional)

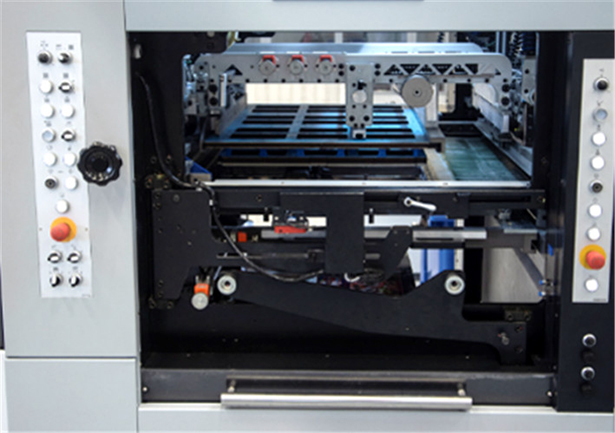

Blanking Station
Integrated quick lock systems for all tools
Fine adjustment of tools with position indicators
Non-stop operation
Automatic pallet change system
Tie sheet inserter
Vacuum bar

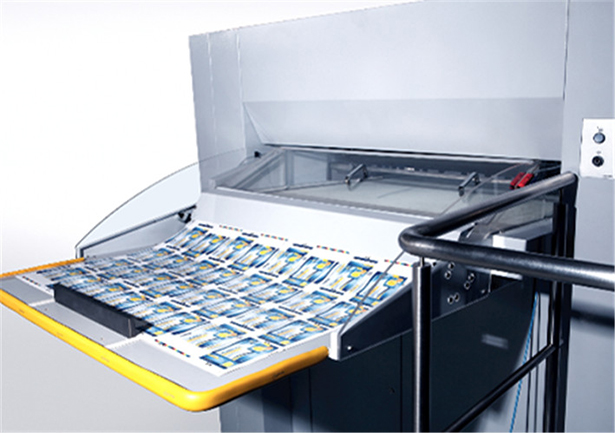

Test Sheet Removal
Quality control during production
No need to stop the production process
Sheet will be cut and stripped and then provided via the waste belt conveyor

Technical Parameter

Suitable material:
Paper (min.) 90 g/m2
Carton Board (max.) 2,000 g/m2
Corrugated Board (max.) 4 mm
Performance data:
Sheet size (max.) 760x 1,060 mm
Sheet size (min.) 350 X 400 mm
Cutting pressure (max.) 2.6 MN / 260T
Machine speed (max.) 8,000 s/h
Pile heights (incl. Pallet):
Feeder pile height (max.)
- w/o non-stop 1,500 mm
- with non-stop operation 1,200mm
Delivery pile height (max.) 1,200 mm
